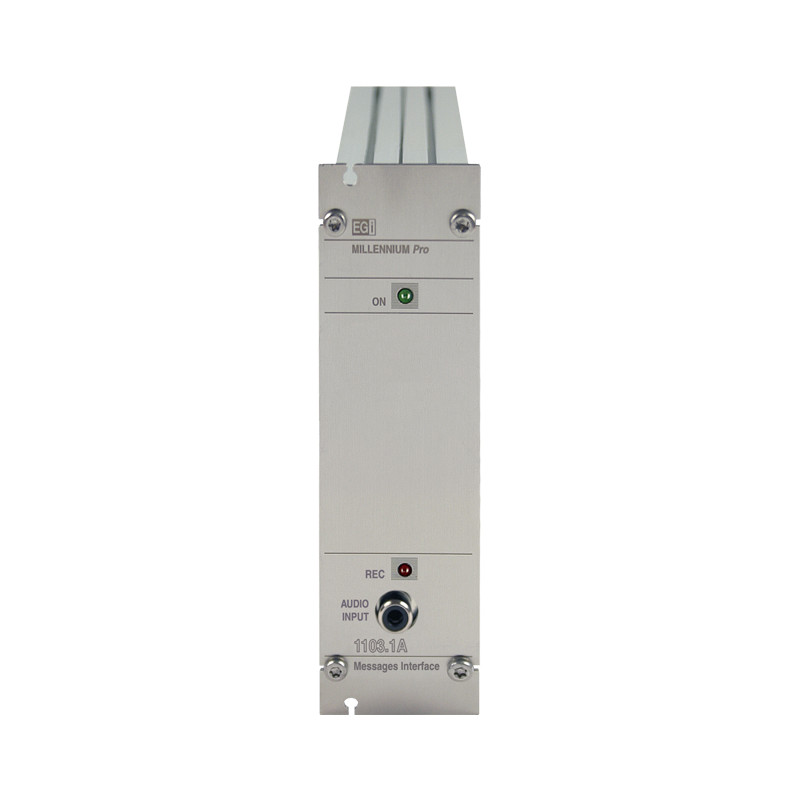

Modular pre-recorded message player with message capacity (it stores up to 8 messages of 15 seconds each). Front red LED to indicate message recording and front green LED to indicate the ON status. Front RCA connector for input of message audio signals. Message recording can be carried out from any device that provides an analogue audio by RCA connector or from any 1202 console by recording the broadcast of a spoken message. Programmable messages via clock timer or via 3 event inputs, by means of 3 voltage-free NO (normally open) contacts. It has a hose with a 14-way ribbon cable and 4 plug-in terminal blocks for the input of events, whose signals activate the broadcast of the programmed message to the selected zone (up to 3 events).
1103.1A
Message recorder/player with digital control
Modular pre-recorded message player with message capacity (it stores up to 8 messages of 15 seconds each). Front red LED to indicate message recording and front green LED to indicate the ON status. Front RCA connector for input of message audio signals. Message recording can be carried out from any device that provides an analogue audio by RCA connector or from any 1202 console by recording the broadcast of a spoken message. Programmable messages via clock timer or via 3 event inputs, by means of 3 voltage-free NO (normally open) contacts. It has a hose with a 14-way ribbon cable and 4 plug-in terminal blocks for the input of events, whose signals activate the broadcast of the programmed message to the selected zone (up to 3 events).
Do you have questions about this product? Contact our support:
sat_consultas@egiaudio.com
It allows to digitally record and store in memory up to 8 different voice messages of 15 seconds long each. Two ways of messages broadcast: 1) by programming the activation time and the recurrence intervale or, 2) detection of any event (e.g. when pushing a button or activating a relay). In both cases the playing zone(s) are to be indicated. Voice messages recording can be carried out from any device which gives an analogic audio signal (0.316 ÷ 3.16V) or from any 1202 console by simulating a voice message broadcast. Should the system be occupied emitting a voice message of any other kind, either through console or phone, the pre-recorded voice message will be automatically emitted once the active voice message is finished. Aluminium. Technical data
- Power supply 15 V
- Current consumption (@ max. power) 120 mA (playing a message)
- Current consumption (@ typ. power) 55 mA (without playing a message)
- CE output for E1, E2, E3 inlets 15 V
- RCA input sensitivity 316 ÷ 3.16 V (automatic)
- Rack units 7 UP; 3 UA
1103.1A
