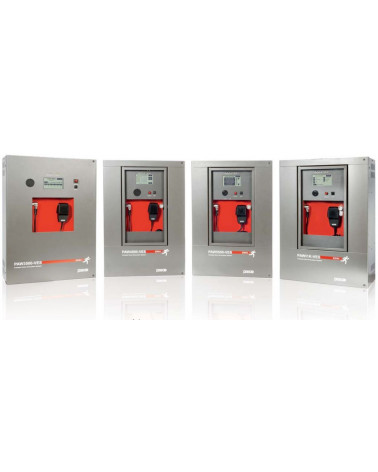

The PAW4500-VES range of compact systems – equipped with a EN54-16 & EN54-4 certified control unit – is specifically designed for ease of installation and for operating in a vast range of applications.

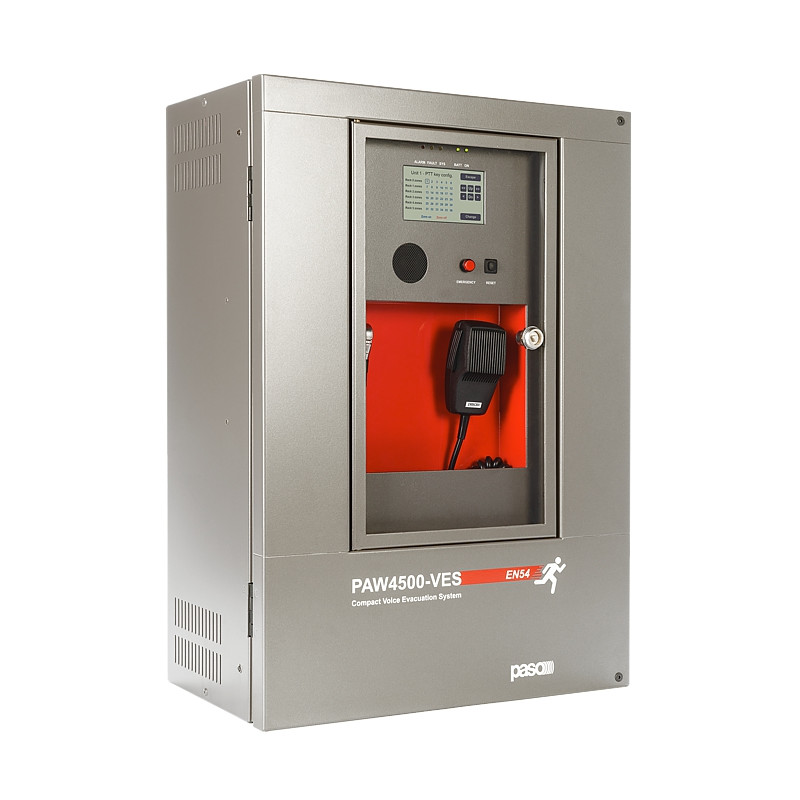

PAW4504-V
Compact Voice Evacuation System EN-54, 500W, 4 zones
The PAW4500-VES range of compact systems – equipped with a EN54-16 & EN54-4 certified control unit – is specifically designed for ease of installation and for operating in a vast range of applications.
Do you have questions about this product? Contact our support:
sat_consultas@egiaudio.com
- Audio rated power: 500 W freely distributed between the zones up to a maximum of 250W (for each zone).
- 4.3” touch screen back-lighted display for alert & evacuation zone selection, levels adjustment, settings and failure visualization.
- Fireman’s monitored microphone on the front panel (included). Sending of EVACUATION and ALERT pre-recorded messages.
- 7 monitored control inputs, each of which is confi gurable to play evacuation and/or alert messages, programmable for each zone, or for the reset of the messages.
- 1 VOX input / 3 configurable relay outputs. Double output A+B per zone.
- Secure front-panel button for operating the emergency system complete with LED indicator. Front-panel reset button.
- Possibility to source either BGM or paging announcements from an auxiliary input or microphone. Possibility to connect up to 16 paging units. Possibility to connect up to 4 remote emergency microphone units or, as an alternative, up to 2 touch screen remote emergency microphone units.
- Possibility to connect further PAW4500-VES (up to 6 units). EN54-4 certifi ed internal battery charger unit for 24Vdc secondary power supply (batteries not supplied).
- Industry-standard 19” rack-mounting format (optional).
PAW4504-V
