06047

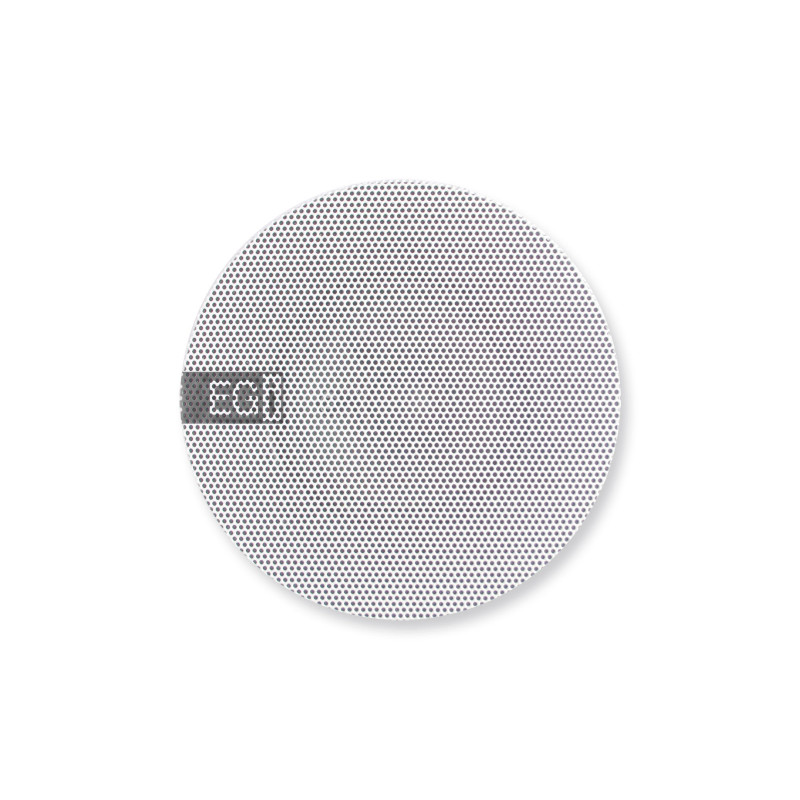

3" speaker HQ 7 W / 16 Ω White metal grille

3 Inches, HQ audio loudspeaker. With screw terminals. Compact loudspeaker with white metallic grille and fixing springs. Available in black: ref. 06070

Do you have questions about this product? Contact our support:

sat_consultas@egiaudio.com

Compact loudspeaker with white metallic grille and fixing springs. 7W & 16 Ohm.

Reference 06047

Data sheet

Impedance: 16 Ohm
Quality: HQ
Max power (RMS): 7W
Angle of coverage (@ 4KHz): 100° @ -6 dB
Cutting diameter (mm): 95
Frequency response (@ -6dB): 90 ÷ 15000 Hz
Sensitivity (1W/1m): 86 dBSPL
Maximun sound pressure level (SPL): 94 dBSPL
Weight: 0.4 kg
Dimensions (mm): diam 112 x 45 mm

Download

06047_06048_06070__06071_06078

Download (6.26M)

06047_French

Download (2.75M)
