06071

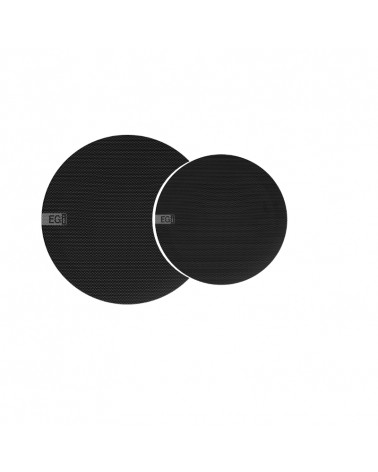

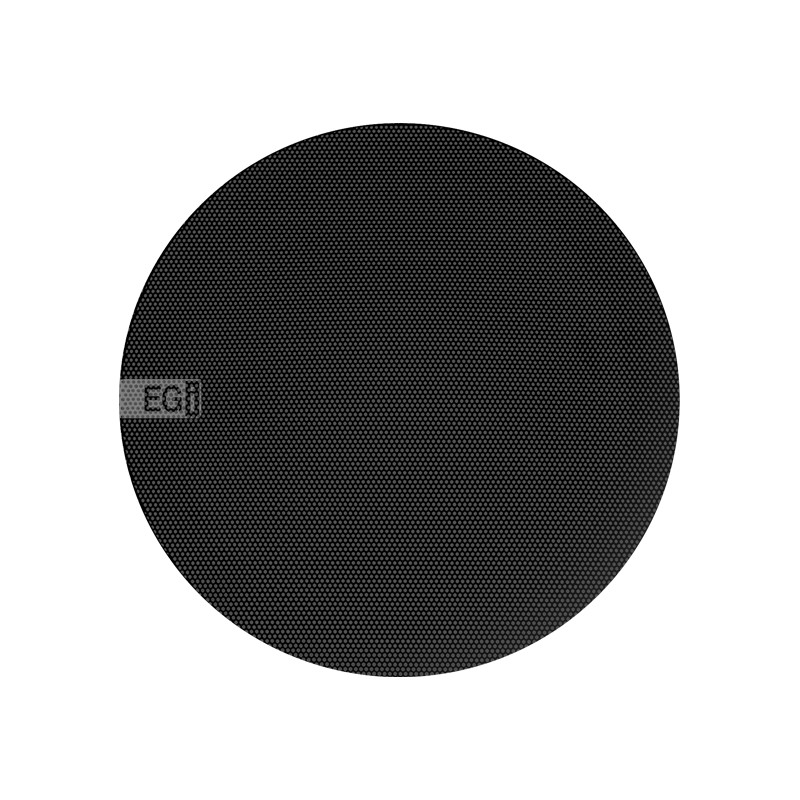

3" speaker HQ 100V line 1.5 - 3 - 6W Black metal grille



Do you have questions about this product? Contact our support:



sat_consultas@egiaudio.com

Maximum power (RMS) 6 W 100 V line / Adjustable power 1.5 - 3 - 6 W Low impedance line/Ω 6,667- 3,333 - 1,667 Ω Quality HQ High Quality Sensitivity (1W, 1m) dB (SPL) 86 dB Frequency response (@ -6dB) 90 ÷ 15.000 Hz Cover angle (@ -4 kHz) 100° Dimensions (X x Y x Z) Ø 112 x 45 mm Cut diameter Ø 95 mm Colour White Built-in grille and springs ready to install

06071

Data sheet

Impedance
1667 Ω; 3333 Ω; 6666 Ω
Quality
HQ
Max power (RMS)
6 W; 3 W; 1.5 W
Angle of coverage (@ 4KHz)
100° @ -6 dB
Cutting diameter (mm)
95
Frequency response (@ -6dB)
90 ÷ 15000 Hz
Connections
Sensitivity (1W/1m)
86 dBSPL
Maximun sound pressure level (SPL)
94 dBSPL
Weight
0,67 kg
Dimensions (mm)
diam 112 x 89 mm
